ZY MPU-6050 Three-axis Acceleration 6DOF Gyroscope Sensor

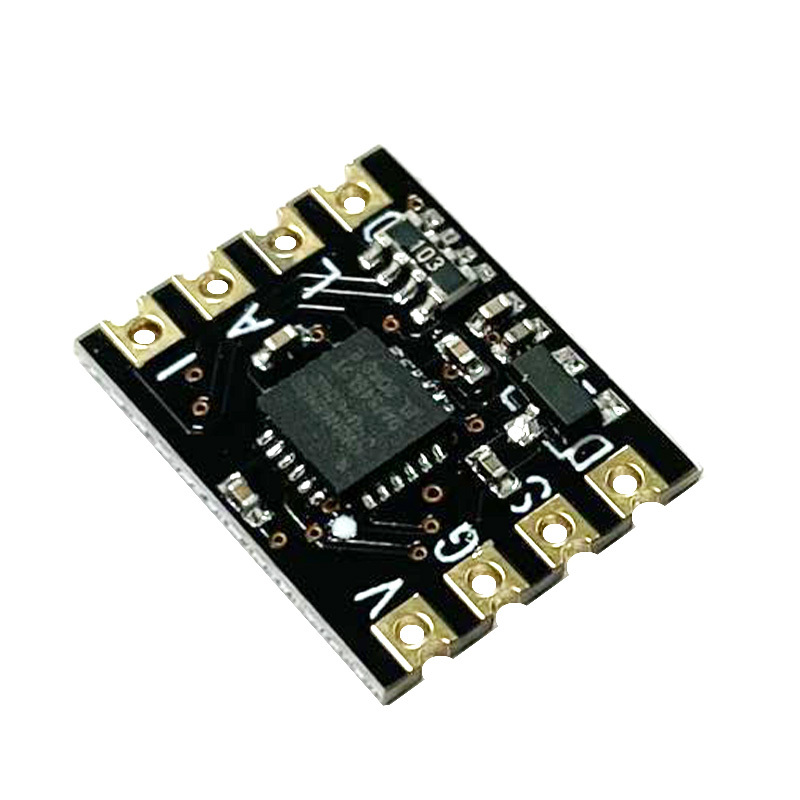

ZY MPU-6050 Three-axis Acceleration 6DOF Gyroscope Sensor ZY MPU-6050 Three-axis Acceleration 6DOF Gyroscope Sensor is listed with source details including zY-MPU6050 accelerometer gyroscope module Product introduction The ZY-MPU6050 accelerometer module is a module based on the MPU6050 six-axis motion processing chip that integrates peripheral LDO and I2C pull-up resistors.; It expands two rows of.. Key source details • ZY-MPU6050 accelerometer gyroscope module Product introduction The ZY-MPU6050 accelerometer module is a module based on the MPU6050 six-axis motion processing chip that integrates peripheral LDO and I2C pull-up resistors. • It expands two rows of. • 54mm pitch gold-plated pin holes and stamp holes, which are convenient for users to solder and Expansion can also be directly attached to the user's product. • The module adopts I2C communication and supports a wide working voltage. • Packed with tape. • The MPU6050 chip integrates a 3-axis gyroscope and a 3-axis accelerometer, and uses three 16-bit ADCs for the gyroscope and accelerometer, respectively, to convert the measured analog quantities into digital quantities that can be output. • In order to accurately track fast and slow motion, the measurement range of the sensor is user-controllable. • Soil 2, Soil 4, Soil 8, Soil 16g. • The MPU6050 chip also has a second IIC interface, which can be used to connect external magnetic sensors. • It can use the built-in digital motion processor (DMP) hardware acceleration engine to output complete 9-axis fusion calculation data to the application side through the main IIC interface. • With DMP, we can use the officially provided motion processing driver library, which is very convenient to implement attitude calculation, reduce the load of motion processing operations on the operating system, and greatly reduce the difficulty of development. • The main parameters. Applications Application suitability is not verified in the source export. Confirm the required electrical, mechanical and environmental limits before use. Compatibility Compatibility was not specified in the source export. Package contents Package contents were not specified in the source export. Usage and safety notes Review the available source specifications and the applicable manufacturer documentation before installation, connection or operation. Warranty Warranty information was not supplied in the source export; confirm current terms with NeoGiga before purchase. NeoGiga availability Available through NeoGiga for prototyping, education, maintenance and production sourcing, subject to technical and commercial review. Advisory only. Verify specifications, compatibility, safety, availability and commercial terms before use or purchase.
